Oxygen vacancies are one of the most studied and significant types of point defects in materials science. These vacancies refer to the absence of oxygen atoms from their expected positions in the crystal lattice, which can significantly influence a material’s physical, chemical, and electronic properties. Oxygen vacancies are particularly important in the fields of ceramics, oxides, semiconductors, and catalysis, and they play a pivotal role in various applications, such as energy storage, sensors, and fuel cells.
What Are Oxygen Vacancies?
An oxygen vacancy occurs when an oxygen atom is missing from the lattice of a material that typically contains oxygen atoms. These vacancies often arise due to thermal or chemical processes, such as high temperatures, oxidative reactions, or material doping. The formation of these vacancies results in an imbalance of charges in the material, leading to a series of electronic and structural changes.

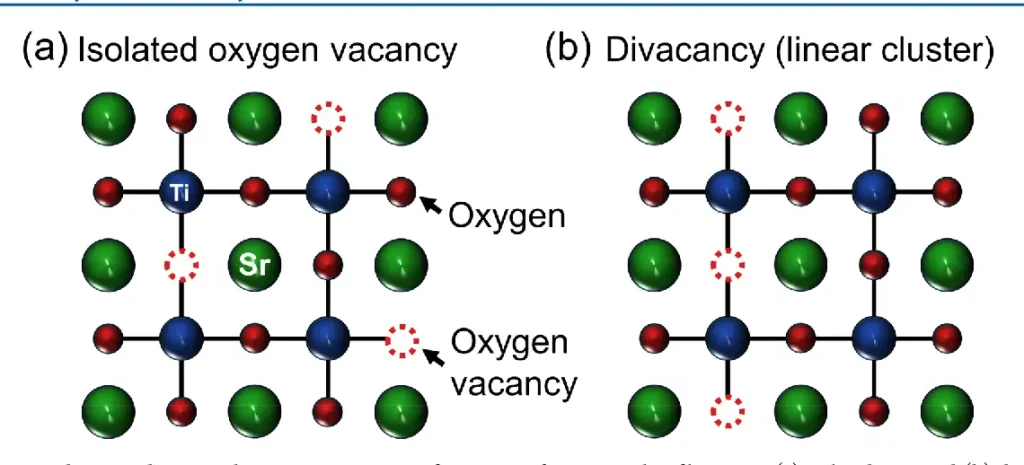

In a typical crystal structure, oxygen atoms are usually arranged in a regular, ordered fashion. However, when oxygen vacancies are created, the missing oxygen atoms leave behind “vacancy sites,” which can introduce local distortion in the lattice. These missing atoms can lead to a redistribution of electrons, which profoundly influences the material’s properties.
Types of Oxygen Vacancies
Oxygen vacancies can be classified into different types based on the nature of the defects and their effects on the material’s electronic behavior:
- Neutral Oxygen Vacancies: In these vacancies, the oxygen atom is completely removed without introducing any charge imbalance. These types of vacancies are rare and typically found in materials under low-stress conditions.
- Charged Oxygen Vacancies: More commonly, oxygen vacancies are charged. A negatively charged vacancy occurs when the removal of the oxygen atom leaves behind an excess of electrons, creating a localized negative charge at the vacancy site. Conversely, positively charged vacancies can occur when the removal of oxygen atoms leaves behind a deficiency of electrons, thus creating a positive charge in the material.
- Clustered Oxygen Vacancies: In some materials, oxygen vacancies may not form in isolation. Instead, they can form clusters or complexes, where several oxygen vacancies are located close together. These clustered vacancies often have a more significant impact on the properties of the material, such as its electrical conductivity or catalytic activity.
Formation of Oxygen Vacancies
The formation of oxygen vacancies in materials can result from various factors, including:
- Thermal Treatment: High temperatures can cause oxygen atoms to be displaced from their lattice positions. As the material heats up, the energy supplied to the system may break the bonds between oxygen atoms and the surrounding metal ions, leading to the formation of oxygen vacancies.
- Chemical Reduction: In materials that contain metal-oxygen bonds, chemical reduction can lead to the loss of oxygen atoms. For example, in a reducing atmosphere, certain metal oxides may lose oxygen atoms, resulting in vacancies in the lattice.
- Doping: Doping a material with elements that have different oxygen affinities or oxidation states can create oxygen vacancies. Doped materials may introduce defects by displacing oxygen or by altering the balance of charge in the lattice, creating vacancies as a result.
- Irradiation: Exposure to high-energy radiation can displace oxygen atoms from the lattice, creating vacancies. This process is particularly significant in materials used in nuclear reactors or space applications, where radiation-induced defects can drastically affect the material’s properties.
Effects of Oxygen Vacancies on Material Properties
Oxygen vacancies have profound effects on the electronic, optical, and mechanical properties of materials. These effects can be both beneficial and detrimental, depending on the material and its intended application.
- Electrical Conductivity
Oxygen vacancies are often associated with an increase in electrical conductivity, particularly in semiconducting and insulating materials. The removal of oxygen atoms creates localized states in the electronic structure, which can act as donor levels, introducing free charge carriers such as electrons or holes. This phenomenon is particularly evident in metal oxides and perovskite oxides, where oxygen vacancies significantly alter the material’s conductivity.
In some materials, such as titanium dioxide (TiO₂), the introduction of oxygen vacancies can enhance its conductivity by introducing free electrons into the system. In other cases, the oxygen vacancies can lead to the formation of an electronic band structure that supports the movement of charge carriers, further increasing conductivity.
- Catalytic Activity
Oxygen vacancies play a crucial role in the catalytic properties of materials, especially in heterogeneous catalysis. These vacancies can provide active sites for chemical reactions by creating an environment that facilitates the adsorption and activation of reactants, such as oxygen molecules.
For instance, in metal oxide catalysts, oxygen vacancies can lower the energy barriers for the adsorption and dissociation of molecular oxygen, enabling reactions like oxidation and reduction. This is particularly important in the field of energy conversion and storage devices, such as fuel cells, batteries, and sensors, where oxygen vacancies can improve efficiency.
- Optical Properties
In materials used for optoelectronic applications, oxygen vacancies can also influence the optical properties, such as absorption, emission, and optical band gap. For example, oxygen vacancies in certain materials can lead to the formation of localized states in the band gap, which can act as traps for charge carriers. These trapped charge carriers may enhance the material’s luminescence or lead to changes in light absorption properties.
- Structural Stability
In some cases, oxygen vacancies can destabilize the crystal structure of the material. The removal of oxygen atoms may induce local lattice distortions, resulting in strains and stresses that can reduce the material’s overall mechanical strength. This is particularly evident in ceramics and oxide materials, where oxygen vacancies may lead to cracking or degradation under high-stress conditions.
- Magnetic Properties
Oxygen vacancies can also influence the magnetic properties of materials. In magnetic oxides, the absence of oxygen atoms can affect the exchange interactions between metal ions, altering the material’s magnetic behavior. For example, in materials like magnetite (Fe₃O₄), oxygen vacancies can lead to a change in the magnetization, potentially making the material more useful in magnetic storage applications.
Applications of Oxygen Vacancies in Materials Science
The influence of oxygen vacancies extends across a wide range of materials and applications. Some of the key areas where oxygen vacancies play a significant role include:
- Fuel Cells and Batteries
In fuel cells and batteries, oxygen vacancies can facilitate the movement of ions (such as oxygen ions in solid oxide fuel cells) and enhance the performance of these devices. Oxygen vacancies can improve the ion conductivity of electrolyte materials, such as yttria-stabilized zirconia (YSZ) in solid oxide fuel cells, making these systems more efficient.
- Sensors
Oxygen vacancies are also crucial in gas sensor technology. Metal oxide-based sensors, such as those used to detect gases like carbon monoxide (CO), nitrogen dioxide (NO₂), or oxygen (O₂), rely on oxygen vacancies to detect changes in the concentration of these gases. Oxygen vacancies increase the surface reactivity of the sensor, making it more sensitive to gas molecules.
- Photocatalysis and Solar Energy Harvesting
In photocatalytic applications, oxygen vacancies can enhance the photocatalytic activity of materials by improving the adsorption of reactants and facilitating the transfer of charge carriers. Materials like titanium dioxide (TiO₂), which have oxygen vacancies, are commonly used for water splitting and solar energy conversion.
- Magnetic Materials
Oxygen vacancies in materials like magnetite or other spinel oxides can alter the magnetic properties, making them useful for applications in magnetic storage, sensors, and other electronic devices.
Conclusion
Oxygen vacancies are essential structural defects in materials science, influencing the physical, chemical, and electronic properties of materials in profound ways. By understanding and controlling the formation of these vacancies, scientists can tune the properties of materials to meet specific needs in diverse applications such as catalysis, energy storage, sensors, and more. While oxygen vacancies can sometimes lead to undesirable effects such as degradation of structural integrity, their role in enhancing conductivity, catalytic activity, and other material properties makes them an indispensable feature in the design of advanced functional materials. As research in materials science continues to evolve, oxygen vacancies will remain a key area of focus for the development of next-generation technologies.
